D941W Electric Ventilation Butterfly Valve

Product overview

Nominal pressure: PN0.05-0.6MPa
Nominal diameter: DN300 ~ 4000mm
Drive mode: pneumatic, electric
Applicable medium: hot and cold air, flue gas
Design standard: GB/T12238-1989 JB/T8692-1998
Flange connection size: GB/T9115.1-2000
Structure length: GB/T12221-1989
Pressure test: GB/T13927-1992;JB/T9092-1999

D941W Electric Ventilation Butterfly Valve product details

D941W Electric Ventilation Butterfly Valve produced and sold by Baigang Valve Group is mainly used in the cold air or hot air gas pipeline containing dust in the ventilation and environmental protection engineering in metallurgy, chemical industry, building materials, power station, glass and other industries, as the gas medium to regulate the flow or cut off device.

D941W Electric Ventilation Butterfly Valve Characteristic:
1. It is designed and manufactured by welding the new structure of the midline plate and the short structure steel plate. It has the advantages of compact structure, light weight, easy installation, small flow resistance, large flow flux, and easy operation to avoid the influence of high temperature expansion.
2, long service life, can be multi-station installation, not affected by the flow of media.

D941W Electric Ventilation Butterfly Valve Structural features:

The butterfly valve is made of the same material as the valve body and is driven by electricity or air. The applicable temperature depends on the material selection of valve body, and the nominal pressure is ≤ 0.6MPa. It is generally applicable to industrial, metallurgical, environmental protection and other pipelines for ventilation and medium flow regulation.

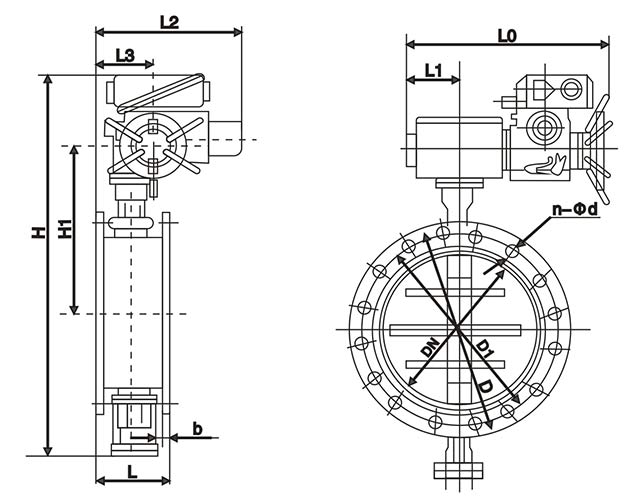

D941W Electric Ventilation Butterfly Valve main dimensions

DN	D	D1	L	L1	L2	n-Фd	b
300	405	370	120	716	220	8-12	10
350	455	420	140	786	240	8-14	10
400	505	470	140	924	270	12-18	10
450	570	530	160	999	295	12-18	10
500	620	580	160	1079	325	12-18	10
600	720	680	180	1140	380	16-18	12
700	820	780	180	1240	430	16-18	12
800	920	880	200	1344	490	16-18	12
900	1040	990	200	1444	540	16-18	14
1000	1140	1090	220	1544	590	20-18	14
1100	1240	1190	220	1644	640	20-18	14
1200	1340	1290	240	1744	690	20-18	14
1300	1440	1390	240	1864	760	20-18	16
1400	1540	1490	260	2020	810	24-18	16
1500	1640	1590	260	2120	860	24-18	16
1600	1740	1690	280	2240	980	24-18	16
1700	1840	1790	280	2340	1030	28-22	16
1800	1940	1890	300	2440	1096	28-22	16
1900	2040	1990	300	2540	1146	32-22	16
2000	2150	2090	320	2640	1196	32-26	16
2200	2360	2300	340	3252	1296	36-26	16
2400	2560	2500	360	3452	1396	36-26	18
2600	2760	2700	380	3652	1496	40-26	18
2800	2960	2900	400	3852	1596	40-26	18
3000	3190	3110	400	3896	1698	44-30	18
3200	3390	3310	440	4110	1798	44-30	20
3400	3590	3510	440	4396	1898	48-30	20
3600	3790	3710	480	4636	1998	48-30	20
3800	4000	3910	480	4886	2098	52-30	22
4000	4210	4120	520	5160	2210	52-30	22

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the D941W Electric Ventilation Butterfly Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
